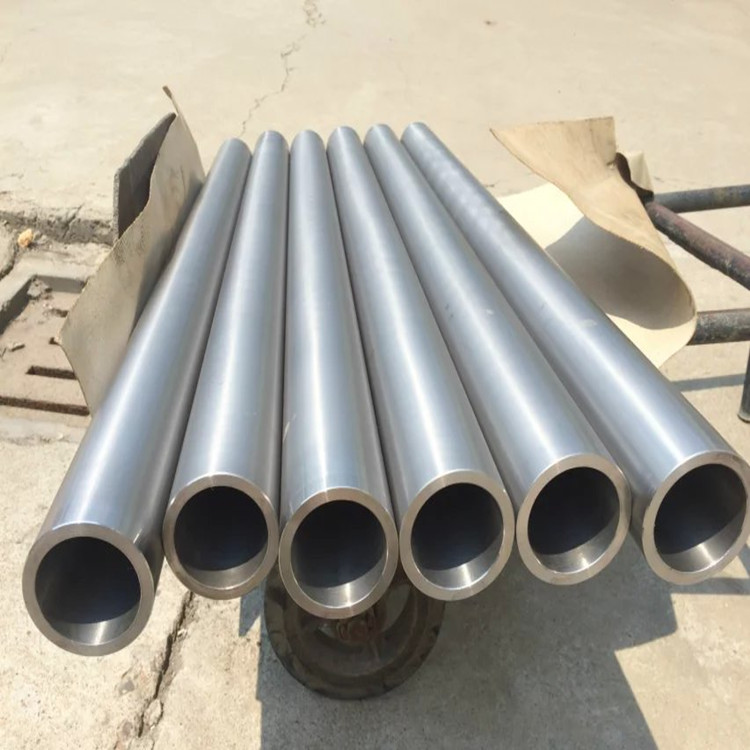

What is Incoloy 600 tube?
Incoloy 600 tubes are highperformance tubes made from a nickelchromiumiron alloy (Alloy 600), known for their excellent corrosion resistance and mechanical strength, making them widely used in hightemperature and harsh environments. Incoloy 600 is a nickel-chromium alloy that is known for its high strength and corrosion resistance. Incoloy 600 tubes are tubes made from this alloy, and they are commonly used in high-temperature applications such as furnaces, heat exchangers, and gas turbine components. Incoloy 600 tubes have excellent resistance to oxidation, carburization, and chloride-ion stress corrosion cracking. They also have good mechanical properties at both room and high temperatures. In addition, they can be easily welded and machined.
Incoloy 600 tube Features and Applications
1. Chemical and Petrochemical Industry
Corrosive Environments: Incoloy 600 tubes perform excellently when handling various acids, alkalis, and other corrosive media, making them particularly suitable for harsh chemical environments.
Heat Exchangers: Commonly used in heat exchangers and evaporators due to their strength and corrosion resistance at high temperatures.
Reactors: Suitable for chemical reactors and pressure vessels, capable of withstanding high temperatures and highpressure operating conditions.
2. Nuclear Industry
Nuclear Reactors: Used in internal components and fuel element cladding of nuclear reactors due to their excellent performance in highradiation and hightemperature environments.
Steam Generators: Used in steam generator tubing in nuclear power plants, ensuring longterm stable operation in harsh environments.
3. Aerospace Industry
Gas Turbine Engines: Used in combustion chambers and turbine components of gas turbine engines, capable of withstanding extremely high temperatures and stresses.
Ducts and Exhaust Systems: Commonly used in aerospace ducts and exhaust systems due to their hightemperature tolerance and oxidation resistance.
4. Heat Treatment Industry
Industrial Furnaces: Used as heating elements and structural components in hightemperature industrial furnaces, capable of withstanding high temperatures and thermal cycling.
Annealing and Quenching Furnaces: Used in metal annealing and quenching processes, providing stable hightemperature performance and oxidation resistance.
5. Power Industry
Boiler Tubes: Used in boiler tubing in thermal power plants, capable of maintaining excellent performance under high temperatures and pressures.
Heat Exchange Equipment: Used in various heat exchange equipment in the power industry, ensuring thermal efficiency and long life.
6. Marine Engineering
Seawater Cooling Systems: Suitable for seawater cooling systems and other equipment in marine environments due to their resistance to chloride corrosion.
Offshore Platforms: Used in offshore drilling platforms and extraction equipment, capable of resisting seawater corrosion and harsh working conditions.
7. Pharmaceutical and Food Processing Industry
Evaporators and Heaters: Used in evaporators and heaters in the pharmaceutical and food processing industries, ensuring clean and stable operation in hightemperature and corrosive environments.
Reaction Vessels: Suitable for reaction vessels handling pharmaceuticals and food, providing a contaminationfree operating environment.
8. Oil and Gas Industry
Pipelines: Used in oil and gas pipelines, capable of withstanding high pressures and corrosive media.
Refining Equipment: Used in various hightemperature processing equipment in refineries, such as cracking furnaces and heat exchangers.
Incoloy 600 tube Chemical Composition
|
Element |
Content |
|
Nickel (Ni) |
72.0% |
|
Chromium (Cr) |
14.0-17.0% |
|
Iron (Fe) |
6.0-10.0% |
|
Carbon (C) |
Max 0.15% |
|
Manganese (Mn) |
Max 1.0% |
|
Silicon (Si) |
Max 0.5% |
|
Sulfur (S) |
Max 0.015% |
|
Phosphorus (P) |
Max 0.015% |
In addition, Incoloy 600 may contain trace amounts of copper, titanium, aluminum, and molybdenum. The high nickel content ensures excellent corrosion resistance in hightemperature environments, while chromium enhances oxidation and scaling resistance. Iron provides strength and ductility.
Incoloy 600 tube Mechanical Properties
|
Property |
Value |
|
Tensile Strength |
550-690 MPa (80-100 ksi) |
|
Yield Strength |
240-415 MPa (35-60 ksi) |
|
Elongation |
30-45% |
|
Hardness (Rockwell B) |
Max 88 |
Incoloy 600 also exhibits good creep and stressrupture properties at high temperatures, making it suitable for demanding hightemperature applications. Specific mechanical properties may vary depending on manufacturing processes, heat treatment, and testing conditions.
Incoloy 600 tube Production and Customization
Production Methods: Produced using seamless or welded methods.
Sizes and Thicknesses: Available in various sizes and thicknesses to meet different application needs.
Heat Treatment: Can be annealed to enhance ductility and toughness.
Incoloy 600 tube Standards: Incoloy 600 tubes typically comply with the following standards:
ASTM B163, B167, B168, B829
ASME SB163, SB167, SB168, SB829
EN 102165
ISO 6207
Incoloy 600 Equivalent Grades
UNS N06600: Unified Numbering System (UNS) designation in the USA.
W. Nr. 2.4816: Werkstoffnummer (material number) in Germany.
NA 14: Designation in the UK by British Standards.
NCr15Fe: Chinese designation according to GB/T 15007.
Incoloy 600 tubes are a popular choice for hightemperature applications due to their excellent corrosion resistance and robust mechanical properties. They offer versatility and customizability, making them suitable for various industries including chemical, nuclear, aerospace, heat treatment, power, marine engineering, pharmaceutical and food processing, as well as oil and gas. Adhering to strict production standards and quality control ensures the reliability and longterm performance of Incoloy 600 tubes.
