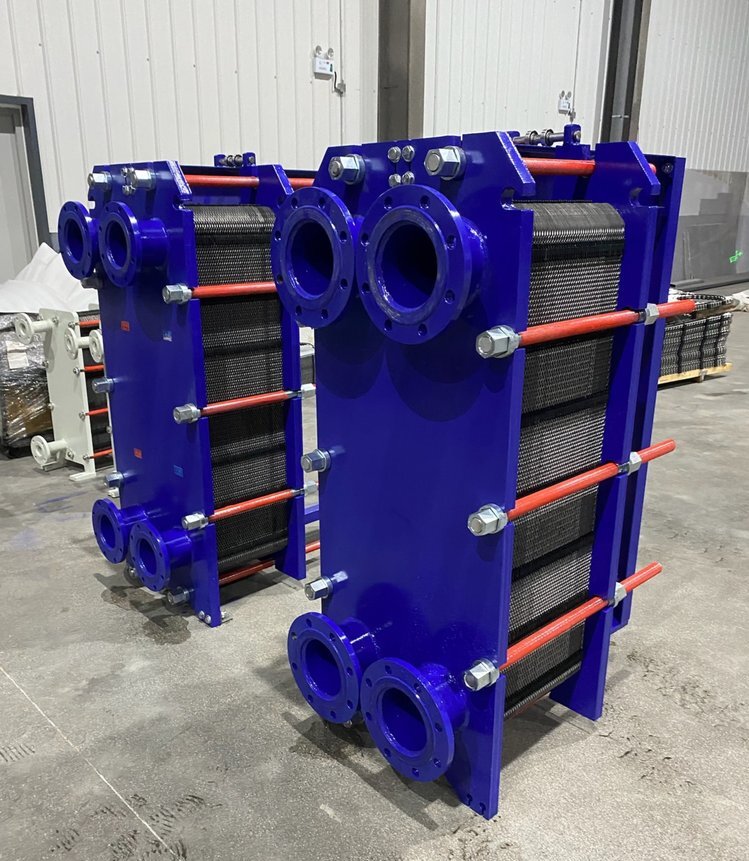

What is a plate heat exchanger?
A plate heat exchanger represents an advanced thermal transfer solution designed for maximum efficiency in a compact form. These systems consist of multiple thin, corrugated metal plates assembled in a frame, creating alternating channels for hot and cold fluids. The design promotes counter-current flow and high turbulence, resulting in exceptional heat transfer rates with minimal energy loss.
Plate Heat Exchanger Construction
Understanding the physical construction of plate heat exchangers helps buyers evaluate durability and suitability for specific applications. The primary components include:
Plate Design
Plates are typically manufactured from stainless steel 304/316, titanium, or specialized alloys. Thickness ranges from 0.4mm to 0.8mm depending on pressure requirements. Corrugation patterns (herringbone, chevron, or washboard) create turbulence and increase surface area by 30-50% compared to flat plates.
Gasket Systems
Modern plate heat exchangers use clip-on or glue-on gaskets made from NBR, EPDM, or Viton. Advanced designs incorporate dual gaskets with signal holes for leak detection. Gasket life typically ranges from 3-8 years depending on temperature and chemical exposure.
Frame Assembly
Frames consist of fixed and movable end plates, tightening bolts, and carrying bars. Heavy-duty frames support pressure up to 25 bar. Compact brazed plate designs eliminate frames entirely for low-pressure applications.
Plate Heat Exchanger Performance Comparison
The following table compares plate heat exchangers with alternative technologies across key procurement criteria:
| Parameter | Plate Heat Exchanger | Shell & Tube | Air Cooled |
|---|---|---|---|
| Heat Transfer Coefficient | 3,000-7,000 W/m²·°C | 500-1,500 W/m²·°C | 30-60 W/m²·°C |
| Approach Temperature | 1-3°C minimum | 5-10°C minimum | 10-20°C minimum |
| Space Requirements | Compact (30-50% of shell & tube) | Large footprint | Very large (requires airflow) |
| Material Efficiency | High (thin plates) | Moderate (thick tubes) | Low (extended surfaces) |
| Cleaning & Maintenance | Easy plate access | Tubes require rodding | Air-side fouling issues |
| Initial Investment | Medium to high | Low to medium | High (with fans/motors) |
| Lifecycle Cost (10 years) | Lowest | Medium | Highest |
Plate Heat Exchanger Selection
Selecting the appropriate plate heat exchanger requires careful consideration of operational parameters and fluid characteristics. Which factors should drive the selection process? How does each parameter influence performance and longevity? Here are the critical elements to evaluate:
Temperature & Pressure
Standard gasketed units operate up to 150°C and 16 bar. Brazed plate designs withstand up to 225°C and 30 bar. For higher parameters, welded plate or semi-welded configurations are recommended. What happens when operating conditions exceed these limits? Performance degradation and premature gasket failure become significant risks.
Fluid Compatibility
Plate and gasket materials must be compatible with both process fluids. Titanium plates handle seawater and chlorides. Nickel alloys resist concentrated acids. Always verify chemical compatibility charts. Which material offers the best corrosion resistance for a given fluid? The answer depends on temperature, concentration, and presence of contaminants.
Fouling Potential
High turbulence minimizes fouling but increases pressure drop. For heavily fouling fluids, consider wide-gap plates or increased flow velocities. Regular maintenance schedules extend service intervals. How does fouling affect thermal performance? Even a thin deposit layer can reduce heat transfer efficiency by 15-30%.
Procurement Note: When specifying plate heat exchangers, always request thermal performance guarantees based on actual operating conditions, not just design points. Include clauses for performance testing upon installation to ensure specifications are met.
Plate Heat Exchanger Industrial Applications
Plate heat exchangers serve diverse industries with specific thermal requirements. What makes them suitable for such a wide range of applications? The combination of compact size, high efficiency, and material flexibility enables deployment across virtually every industrial sector.
Plate Heat Exchanger Maintenance
Proper maintenance ensures optimal performance and extends equipment life. Why is proactive maintenance more cost-effective than reactive repairs? Because unplanned downtime and component replacement often exceed the cost of routine servicing. Key maintenance aspects include:
- Regular Inspection: Check for leaks, corrosion, and gasket condition every 3-6 months depending on service severity.
- Cleaning Protocols: Mechanical cleaning with soft brushes or chemical cleaning for deposits. Avoid abrasive tools that damage plate surfaces.
- Gasket Replacement: Schedule gasket replacement based on operating hours and temperature exposure rather than waiting for failure.
- Performance Monitoring: Track approach temperatures and pressure drops to identify fouling before it impacts operations.
- Winterization: For seasonal operations, ensure proper draining or anti-freeze protection to prevent freeze damage.
Modern plate heat exchangers incorporate design features that simplify maintenance. Quick-release mechanisms on larger frames allow plate pack access without complete disassembly. Laser-welded plates in brazed units eliminate gaskets entirely for low-maintenance applications.
Plate Heat Exchanger Energy Efficiency
The energy efficiency advantages of plate heat exchanger technology translate directly to operational cost savings. How does this technology achieve such high thermal performance? The combination of thin plates, optimized corrugation, and counter-current flow maximizes the temperature driving force while minimizing thermal resistance.
- Reduced Pumping Power: Optimized channel design lowers pressure drop, decreasing pumping energy by 15-40% compared to shell-and-tube alternatives.
- Waste Heat Recovery: Close temperature approaches enable recovery of low-grade heat that would otherwise be rejected to atmosphere.
- Compact Design Savings: Smaller footprint reduces structural support requirements and installation costs, particularly in retrofit applications.
- Material Efficiency: Thin plates minimize material usage, reducing both initial resource consumption and end-of-life recycling burden.
For facilities implementing sustainability initiatives, plate heat exchangers contribute significantly to reducing Scope 1 and 2 emissions through improved thermal efficiency. Many operations achieve payback periods of 12-24 months when upgrading older heat exchange equipment to modern plate designs.
Plate Heat Exchanger Technical Specifications
When preparing procurement documentation, include these essential technical specifications. What details must be defined to ensure the equipment meets operational requirements? The following parameters form the foundation of a complete specification:
- Thermal Duty: Heat load (kW), fluid flow rates, inlet/outlet temperatures for both sides.
- Design Conditions: Maximum/minimum operating temperatures and pressures, including startup/shutdown conditions.
- Materials of Construction: Plate material (grade and thickness), gasket material, frame coating specification.
- Connection Details: Port sizes, flange ratings, orientation requirements, and accessibility needs.
- Performance Guarantees: Approach temperature, pressure drop, and heat transfer coefficients at specified conditions.
- Testing Requirements: Factory hydrostatic test pressure, optional thermal performance testing, and documentation deliverables.
For specialized applications involving extreme temperatures, high pressures, or corrosive fluids, consult with engineering teams to select between gasketed, brazed, welded, or semi-welded plate heat exchanger configurations. Each design offers distinct advantages for specific operational environments.
Plate Heat Exchanger Plate Pattern Comparison
The corrugation pattern of plates directly influences thermal performance and pressure drop characteristics. Which pattern delivers the best balance for a given application? The table below compares common plate patterns:
| Pattern Type | Heat Transfer Enhancement | Pressure Drop | Fouling Resistance | Typical Applications |
|---|---|---|---|---|
| Herringbone (Chevron) | Very High | High | Moderate | High-duty HVAC, chemical reactors |
| Washboard | Moderate | Low | High | Food processing, fouling fluids |
| Dimple | Moderate | Low to Medium | Very High | Pulp & paper, wastewater |
| Micro-channel | Ultra High | Very High | Low | Clean fluids, high-performance cooling |
Selection of the appropriate plate pattern depends on the balance between thermal performance, allowable pressure drop, and fluid cleanliness.
Plate Heat Exchanger Frequently Asked Questions
What is a plate heat exchanger and how does it work?
A plate heat exchanger is a thermal transfer device that uses multiple thin, corrugated metal plates assembled in a frame to create alternating channels for hot and cold fluids. Heat transfers through the plates via conduction, while the corrugation patterns induce turbulence that enhances convective heat transfer. The counter-current flow arrangement maximizes the temperature difference across the plates, achieving high thermal efficiency in a compact footprint.
Which materials are commonly used for plate heat exchanger plates and gaskets?
Plates are typically manufactured from stainless steel grades 304, 316, or 316L for general applications, titanium for seawater and chloride environments, nickel alloys for high-temperature corrosive services, and Hastelloy for extreme chemical resistance. Gasket materials include NBR for oil and hydrocarbon services, EPDM for water and steam applications, Viton for high-temperature and aggressive chemical exposure, and PTFE for universal chemical resistance.
How to select the right plate heat exchanger for a specific application?
Selecting a plate heat exchanger requires evaluating thermal duty (heat load, flow rates, inlet/outlet temperatures), operating pressure and temperature limits, fluid compatibility with plate and gasket materials, fouling potential, and space constraints. Additional factors include maintenance accessibility, expected service life, and total lifecycle cost. Always request thermal performance guarantees based on actual operating conditions rather than design point estimates.
What is the typical lifespan of a plate heat exchanger and what factors affect it?
A well-maintained plate heat exchanger typically operates for 15 to 25 years. Lifespan depends on operating conditions including temperature cycling, pressure fluctuations, fluid corrosivity, fouling rates, and maintenance practices. Gasket life ranges from 3 to 8 years depending on temperature and chemical exposure. Regular inspection, proper cleaning protocols, and timely gasket replacement significantly extend the overall equipment life.
How to maintain a plate heat exchanger for optimal performance?
Effective maintenance includes regular visual inspection for external leaks and corrosion, monitoring approach temperatures and pressure drops to detect fouling, implementing mechanical or chemical cleaning procedures as needed, scheduling gasket replacement based on operating hours rather than waiting for failure, and maintaining proper winterization for seasonal operations. Record-keeping of performance data enables predictive maintenance and early problem identification.
