SA210 Grade A-1 Seamless Steel Pipe for Boiler Heat Exchanger Service
SA210 Grade A‑1 Seamless Steel Pipe: Core Tubing for Medium‑pressure and Medium‑temperature Industrial Conditions
SA210 Grade A‑1 is a carbon‑steel seamless boiler tube under ASME SA210 specification. It is mainly used for heating‑surface tubes such as boiler SA210 water wall tubes, economizers and superheaters. With balanced mechanical properties, favourable medium‑temperature performance and excellent weldability, it is a mainstream tubing for medium‑temperature and medium‑pressure thermal‑pressure conditions, and widely applied in thermal systems of power‑station and industrial boilers.
1. Product Standard and Basic Definition
SA210 Grade A‑1 seamless steel pipe complies with ASME SA210/SA210M standard, corresponding to ASTM A210 specification. It is one of the most commonly‑used medium‑carbon carbon‑steel seamless boiler tubes in American standard system. Different from ordinary seamless pipes for fluid transportation, it is specifically adapted to medium‑temperature pressure‑bearing service conditions. Classified as high‑quality medium‑carbon steel, it is produced exclusively by seamless process without welded joints. It structurally eliminates hidden dangers of weld cracking and leakage, and is suitable for long‑term continuous industrial operation.
Compared with Grade C under the same standard, SA210 A‑1 has lower carbon content with better toughness and weldability. Compared with A192 low‑carbon boiler tubes, it achieves greatly improved strength and pressure‑bearing capacity. It strikes an optimal balance among strength, toughness and workability, and ranks among the most cost‑effective special tubes for medium‑temperature and medium‑pressure service.
2. Core Chemical Composition (Standard‑compliant Ratios)
SA210 Grade A‑1 complies with American‑standard limits, featuring extremely low impurities and outstanding composition uniformity. Key chemical elements are as follows:
| Element | Specification Value | Function Description |
|---|---|---|
| Carbon (C) | max. 0.27% | Provide sufficient basic strength, avoid poor toughness and weld‑cracking risks, ensure structural stability at elevated‑temperature. |
| Manganese (Mn) | ≤ 0.93% | Improve toughness, tensile strength and hot‑workability, optimize rolling quality and enhance fatigue resistance. |
| Silicon (Si) | ≥0.10% | Deoxidizing element, refine grain structure, improve oxidation resistance and reduce internal inclusion defects. |
| Phosphorus (P) | ≤0.035% | Control harmful impurity, prevent low‑temperature brittleness. |
| Sulfur (S) | ≤0.035% | Control harmful impurity, prevent high‑temperature hot brittleness. |
Per relevant standard provision: for every 0.01% reduction in carbon content, manganese content can be increased by maximum 0.06%, up to a ceiling of 1.35%. Such flexible composition range guarantees compliant and stable performance for pipes manufactured via different production processes.
3. Key Mechanical and Physical Parameters
Mechanical Properties
- Tensile Strength: ≥415 MPa
- Yield Strength: ≥255 MPa
- Elongation after Fracture: ≥30%
- Hardness: ≤79HRB (143HB)
Performance Remark
Excellent basic load‑bearing capacity to steadily withstand impacts from medium‑high‑pressure media. Strong deformation resistance against plastic deformation under long‑term pressure. Sufficient toughness to adapt to equipment vibration and cyclic‑temperature conditions and resist brittle fracture. Moderate hardness facilitates secondary processing including cutting, welding and bending.
4. Manufacturing Process and Quality Control
SA210 Grade A‑1 seamless steel pipe is entirely manufactured by seamless rolling with rigorous process flow: high‑quality carbon‑steel billet cutting → heating and piercing → hot‑rolling / cold‑drawing forming → sizing and straightening → heat‑treatment as required → non‑destructive testing → finishing and warehousing. Among them, hot‑rolled finished products can be supplied in as‑hot‑rolled condition without mandatory heat‑treatment. Cold‑drawn finished products, upon completion of final cold working, must undergo sub‑critical annealing, full annealing or normalizing heat‑treatment to thoroughly relieve residual internal stress induced by cold working, refine metallographic microstructure, significantly improve high‑temperature stability and fatigue resistance of steel pipes, and avoid deformation and cracking during subsequent service.
Quality inspection shall be implemented strictly in accordance with ASME SA210 American standard specification: every single steel pipe shall undergo hydrostatic test. Subject to purchaser’s approval, hydrostatic test may be replaced by eddy‑current testing or ultrasonic testing to accurately detect internal defects such as blowholes, cracks and laminations. Meanwhile, mechanical‑property test, chemical‑composition analysis, flattening test, flaring test, hardness test and dimensional inspection shall be performed on a batch‑sampling basis.
5. Core Product Advantages
Excellent Medium‑temperature Pressure‑bearing Performance
Designed for medium‑temperature medium‑pressure boiler service conditions. It can maintain stable mechanical properties for long‑term operation at 343 ℃ and below, with gentle strength degradation and prominent thermal‑deformation‑resistance performance, suitable for continuous operation of boiler bodies and thermal systems.
Superior Workability and Compatibility
Moderate hardness and favourable toughness. It presents good workability for welding, cutting, bending, flaring and other processing operations. It features low construction difficulty and good forming effect, can adapt to complex piping layouts and greatly improve project construction efficiency.
Good Corrosion Resistance and Durability
Purified material composition and extremely low‑impurity content endow steel pipes with good oxidation resistance and steam‑water corrosion resistance. It resists rusting and scaling under steam and hot‑water media, and achieves longer service life compared with ordinary fluid‑transport steel pipes.
Outstanding Cost‑effectiveness
Compared with stainless‑steel and alloy heat‑resistant steel pipes, SA210 A‑1 has lower cost, and its performance fully satisfies most medium‑temperature thermal‑pressure service conditions. It balances quality and economy, and acts as preferred tubing for cost‑reduction and efficiency‑improvement of industrial thermal systems, also known as ASME SA210 heat exchanger tube in thermal‑power projects.
6. Main Application Scenarios

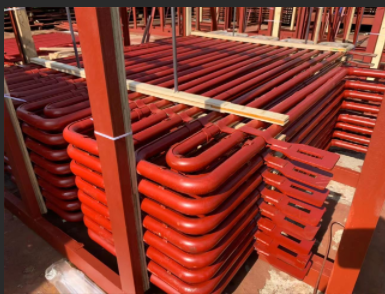

- Power Industry: Water‑wall tubes, low‑temperature superheater tubes, economizer tubes and other critical heating‑surface tubes of power‑station boilers; internal boiler steam‑water circuit pipe fittings.
- Chemical and Energy Industry: Heating‑surface tubes for waste‑heat boilers and industrial waste‑heat recovery systems in chemical plants (limited to non‑corrosive, clean steam‑and‑water service only).
- Industrial Thermal Engineering: Heating‑surface tubes for various medium‑temperature medium‑pressure industrial boilers and special heat‑exchange tubes supporting boilers.
Application Note: This pipe is a dedicated boiler heating‑surface tube under ASME standard. It shall not be applied to long‑distance off‑site steam piping within plant area, heavily‑corrosive chemical‑process pipelines, condenser tube bundles or commercial HVAC hot‑water circulating pipelines. Dedicated alternative pipes shall be selected for the above‑mentioned scenarios.
7. Selection and Application Precautions
- Service‑condition Suitability: This pipe is intended for dedicated medium‑temperature medium‑pressure boiler service. It shall not be used for ultra‑high‑temperature, ultra‑high‑pressure or strong‑acid‑and‑alkali corrosive‑media scenarios. Alloy pipes shall be adopted for extreme working conditions.
- Process Distinction: Seamless finished products must be specified. Welded steel pipes are strictly prohibited for substitution, so as to eliminate safety hazards caused by weld failure under high‑temperature pressure.
- Welding Specification: Welding consumables and procedures matching medium‑carbon steel shall be adopted. Pre‑heating and post‑weld thermal‑insulation measures shall be implemented for thick‑wall pipes, low‑ambient‑temperature conditions or highly‑restrained joints, so as to reduce welding residual stress and prevent cold cracks at joints.
- Storage Protection: Moisture‑proof and rust‑proof measures shall be taken during storage to avoid surface rust and oxidation scale of steel pipes, which would impair installation and service performance.
